Kev tshwm sim marquee tsev pheeb suab
Daim ntawv thov ntawm qhov kev tshwm sim marquee tsev pheeb suab:

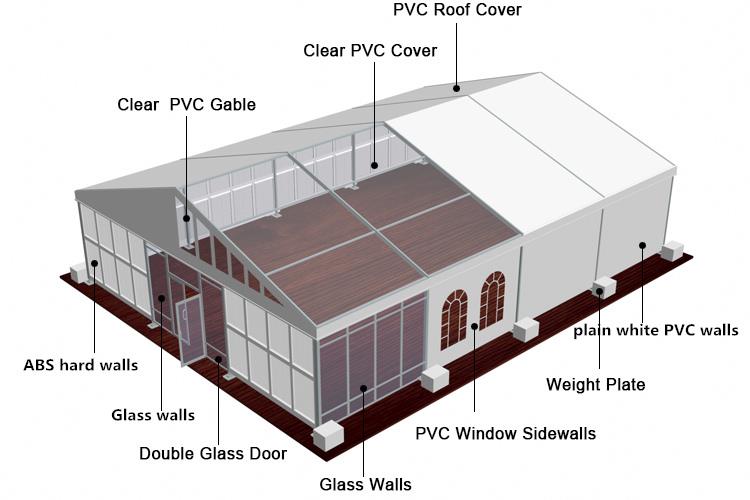

Lub tsev pheeb suab ntaub uas muaj qhov rai uas muaj qhov rai, kho kom zoo nkauj sab nrauv, hauv daim iav, iav phab ntsa thiab ob chav tis iav qhov rooj nkag. Cov xwm txheej marquee yog siv los ua tog neeg lub tsev pheeb suab, tshoob tsev pheeb suab, rooj ywj siab, lub tsev pheeb suab sib tham, kev ua koob tsheej ntawm cov koom txoos, koom kev ua si los yog lwm yam txheej xwm.
Specification ntawm kev tshwm sim marquee tsev pheeb suab:
Hom | Kev Siv Luam Tshaj | Bay nrug | Eave Qhov siab | Ridge Qhov siab | Main Profile |
BT | 15m | 5m | 4m | 6.3m | 203x110x4.5mm (4-channel) |
BT | 20m | 5m | 4m | 7.2m | 203x110x4.5mm (4-channel) |
BT | 21m | 5m | 4m | 7.3m | 203x110x4.5mm (4-channel) |
BT | 25m | 5m | 4m | 8.0m | 203x110x4.5mm (4-channel) |
Qhov ntev yuav ncua ntev li ntawm 5m ib sab, tsis xam, xws li 25m, 30m, 40m, 50m, + 5m ... Qhov loj me me yog muaj. | |||||
Lub ntsiab ncej profile: 203x110x4.5mm
Cua load: 100km / h.
Snow loading: 75kg / sq.m
Tsawg kawg ntawm lub tsev pheeb suab ntev: Yuav kom paub tseeb tias lub tsev pheeb suab kev nyab xeeb thiab ncav cuag lub cua load, thov teeb tsa lub tsev pheeb suab nrog qhov yuav tsum tau kom ntev tsawg.
Cov khoom ntawm kev tshwm sim marquee tsev pheeb suab:

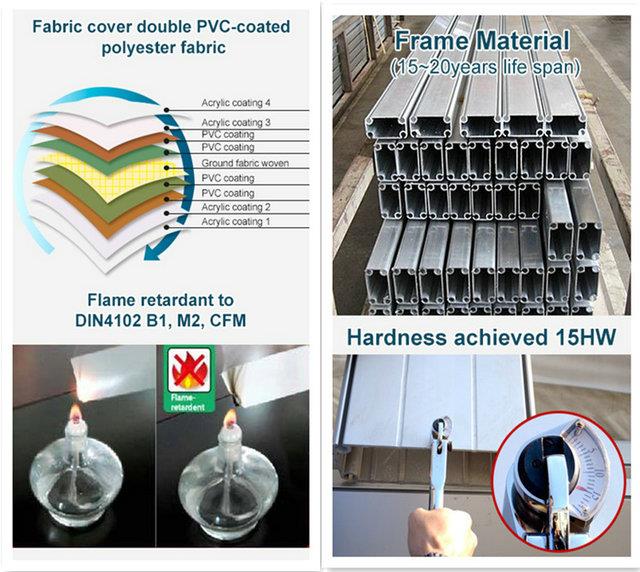

Cov ntaub thaiv npog: 650g / sq.m pvc ntaub, translucent) Cov ntaub ntawv:
Ncej: Nyuaj pressed extruded txhuas 6061 / T6, anodized nplaum xov.
Kev Sib Txuas: Kub-DIP galvanized
Optional accessories rau dai kom zoo nkauj:

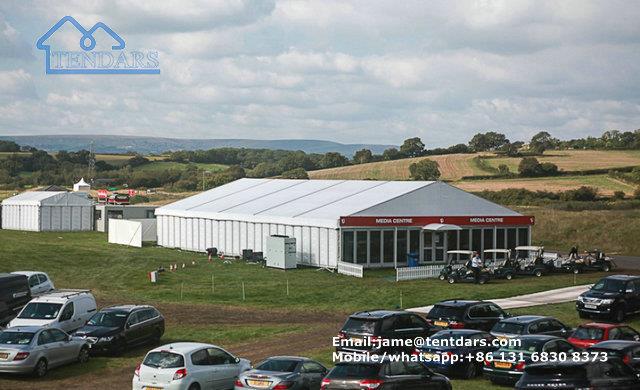

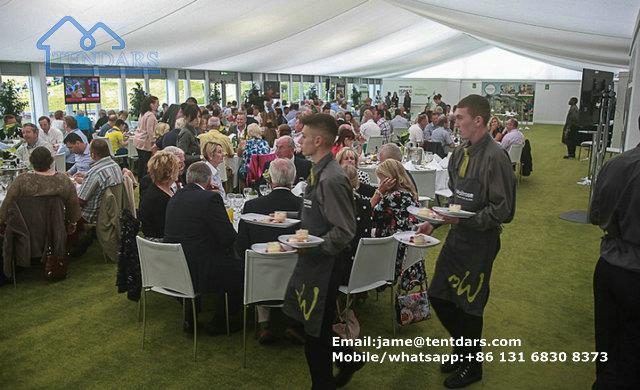

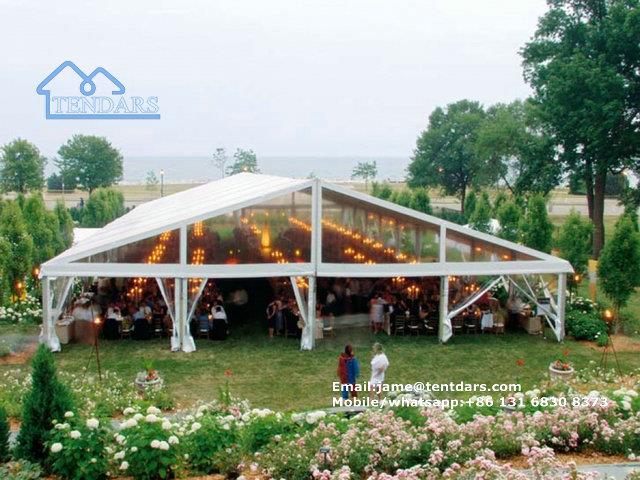

Cov duab duab qhia:
Yog muaj lus nug los yog nug txog tus nqi, thov tuaj yeem kuaj nrog peb los yog tawm koj cov lus tam sim no!
